batt + lear

artistic, sustainable solutions

The 999

batt + lear
  • About/
    • Who We Are
    • Our process
    • Awards + Accolades
  • Projects/
    • Remodels
    • Cottages and DADUs
    • Homes
    • Commercial
    • Set Design
    • Under Construction
  • Careers/
  • Let's meet!/
    • Contact Us
    • Events

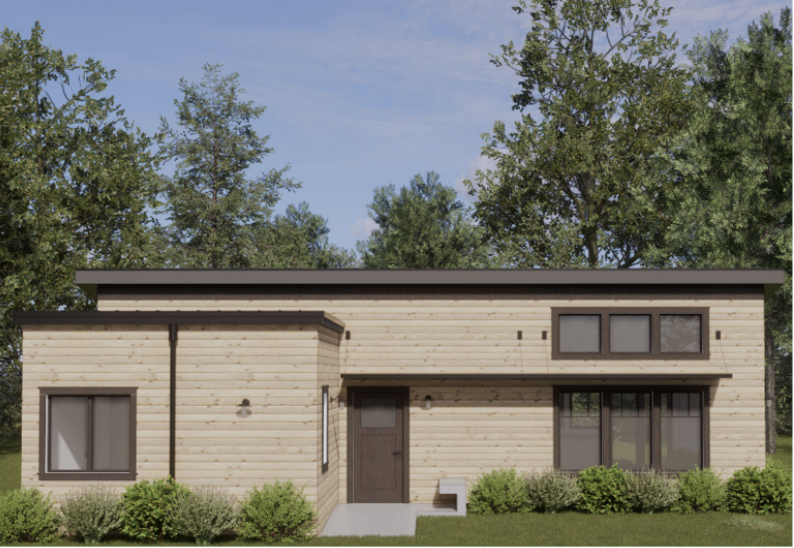

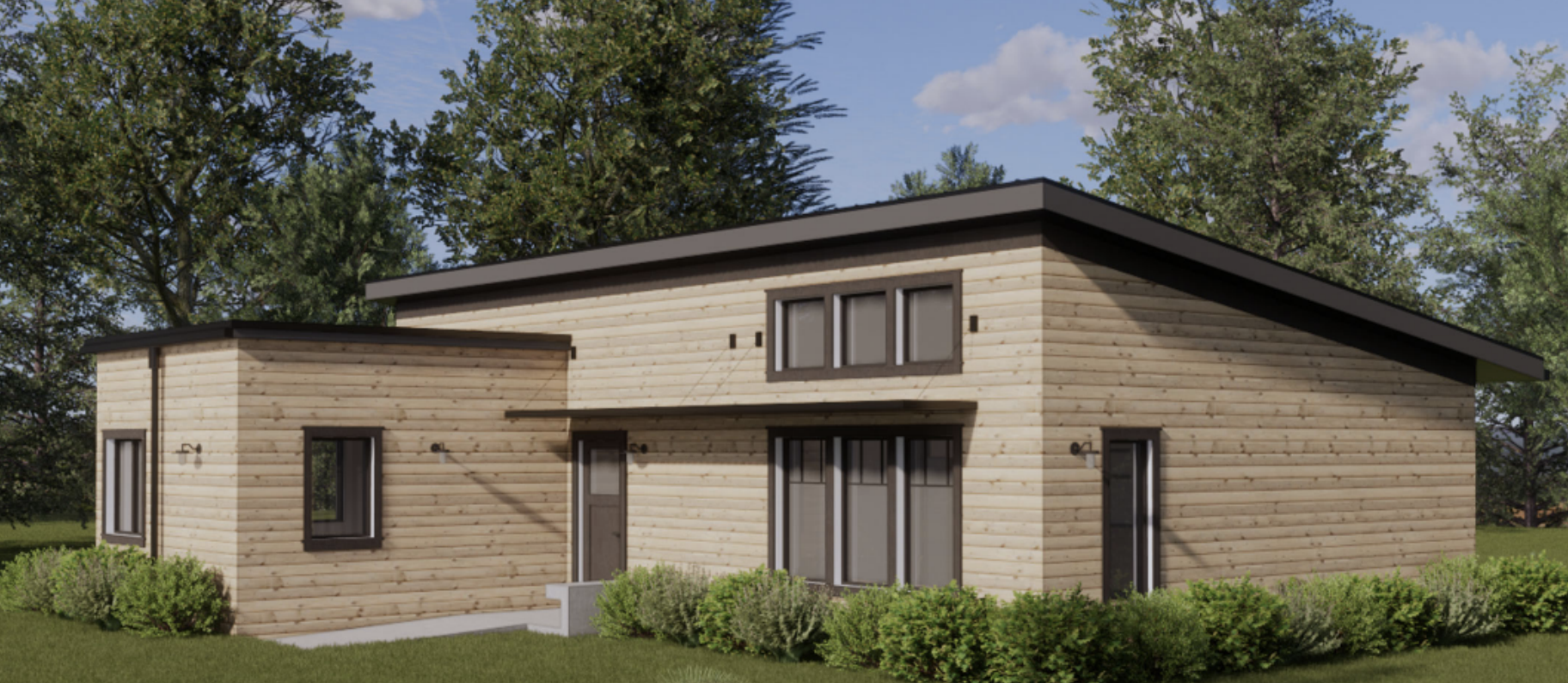

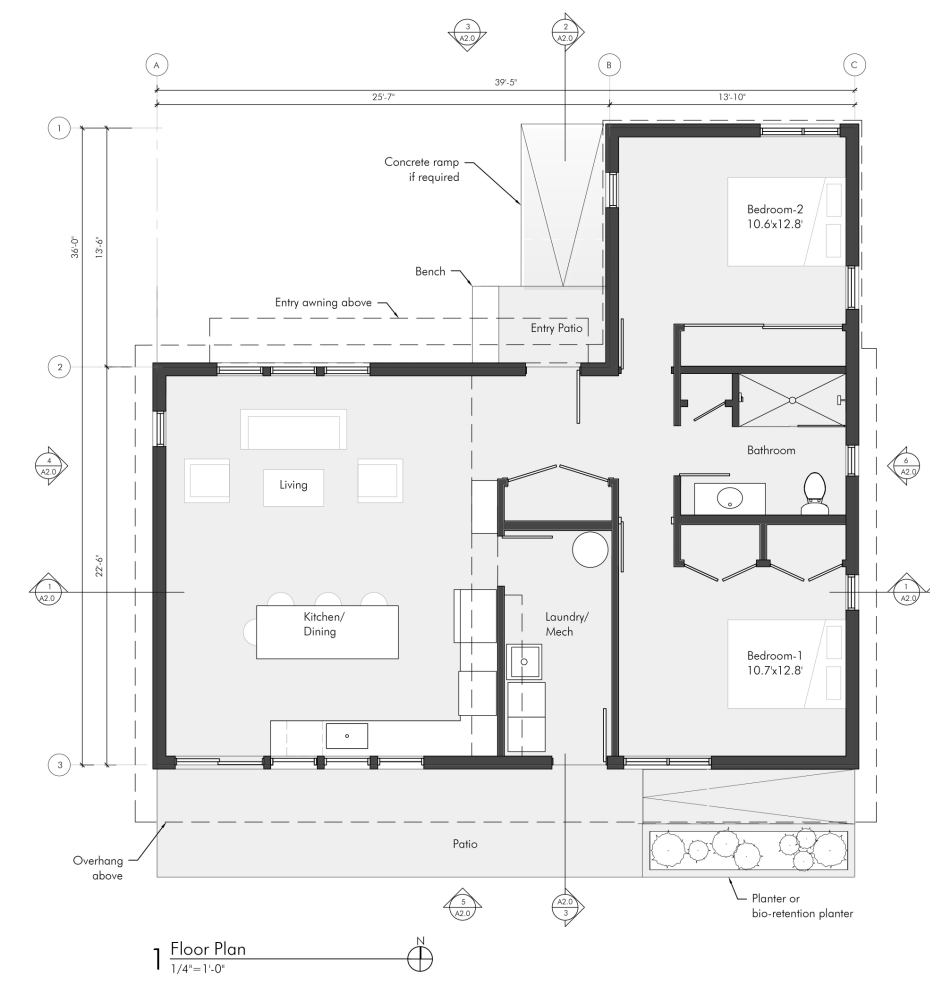

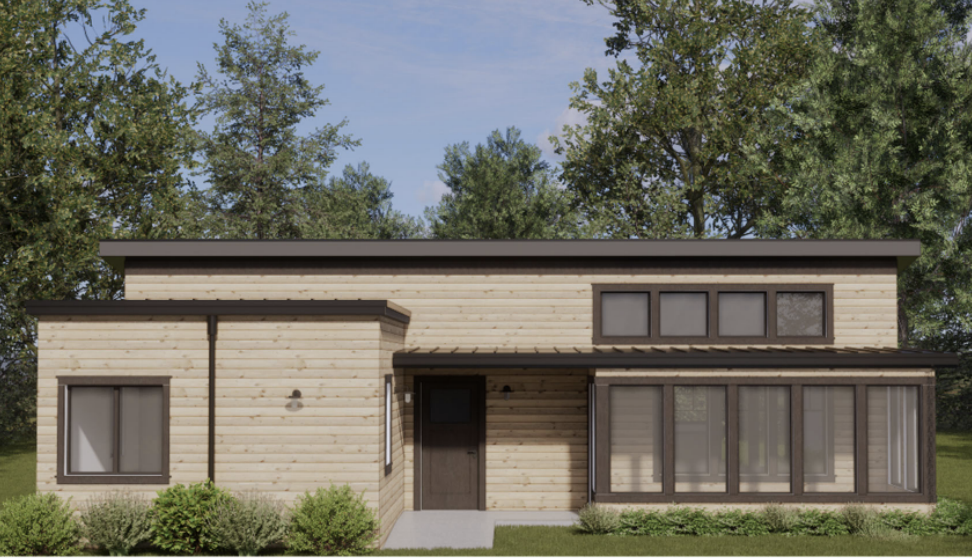

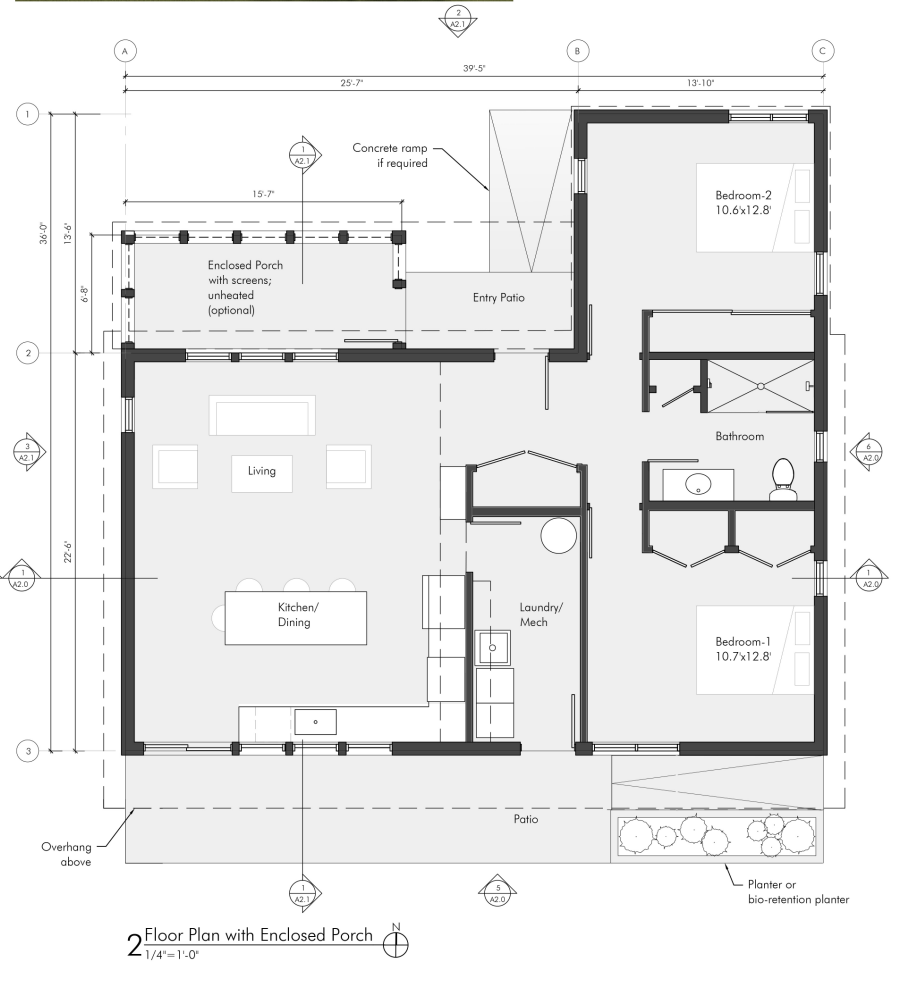

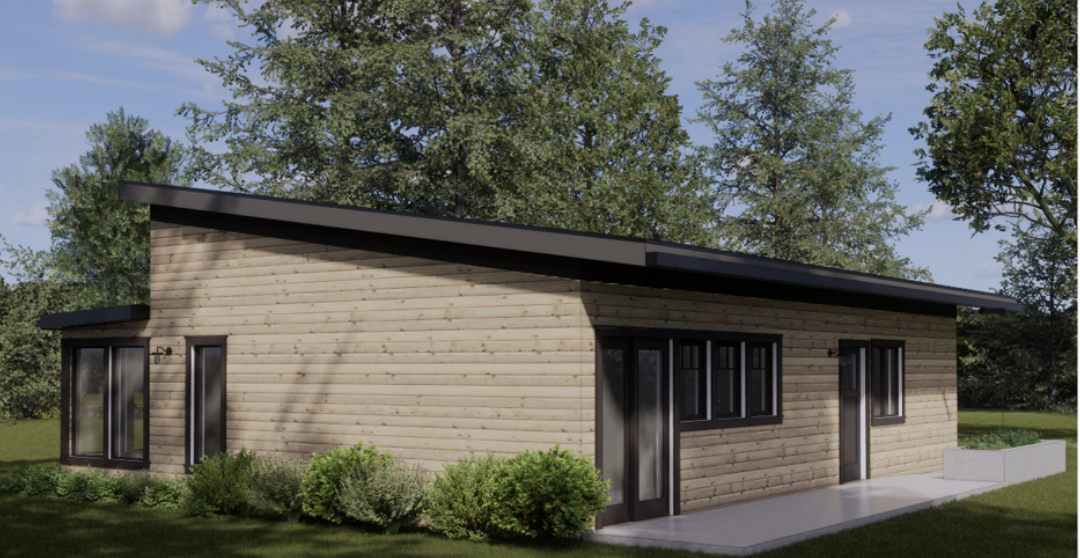

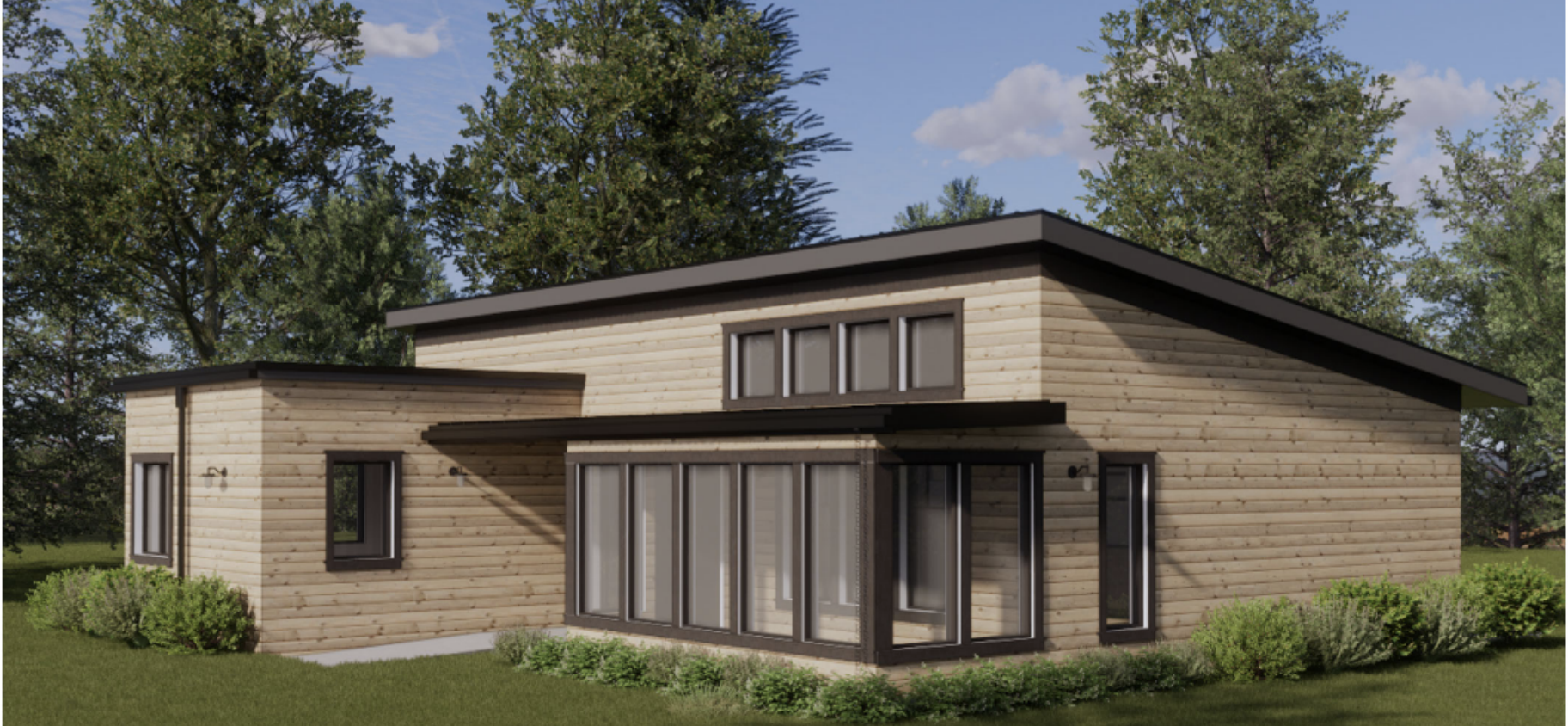

This design is a 999-square-foot single-story accessible Primary Home or DADU. This floor plan comes in 2 options: one with a screened front porch and one without. The simple open plan places the dining, kitchen, and living spaces near gracious window and door openings. The home's design focuses on aging-in-place and easy-to-use comfortable living.


The 999 1.png
The 999 2.png
The 999 3.png
The 999 4.png
The 999 5.png
The 999 6.png
The 999 7.png
The 999 8.png
1 2 3 4 5 6 7 8
Previous Next
The 999 1.png
The 999 2.png
The 999 3.png
The 999 4.png
The 999 5.png
The 999 6.png
The 999 7.png
The 999 8.png


Features

Contextual Design

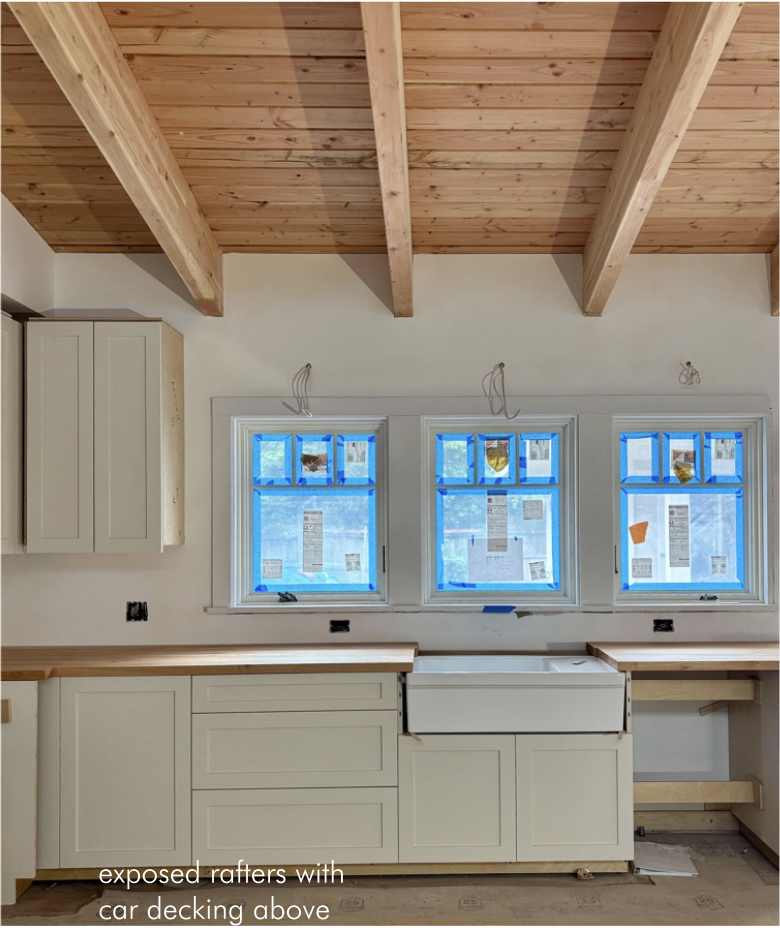

  • Vaulted ceiling can be upgraded to salvaged wood rafters and car-decking with outboard insulation

  • Compact design with efficient and comfortable plan

  • Design focuses on simple, open floor plan while providing clear public and private zones

  • Layout allows ample storage spaces

Resilience and Sustainability

  • Shed roof provides optimal area for a future solar panel array

  • Shed roof collects rainwater on one side for potential bio-retention planter as part of rainwater management

  • Simple building site plans provide multiple options for building-mounted EV charging

  • Low energy consumption and high level of insulation/air-sealing included in construction details on specifications

  • All-electric home (equipment details and specifications available)

  • Rainscreen wall assembly lengthens life of the building

  • Metal roof provides for low maintenance and future penetration-free solar installation

  • Right-sized roof overhang to take advantage of low Winter sunlight and to avoid overheating in Summer

  • Window layout allows natural cross-ventilation

  • Material package focuses on healthy, low-maintenance, and low-carbon-footprint

Accessibility and Universal Design

  • One-level living with generous entry and spaces that work for everyone

  • Low-profile entry thresholds and flooring transitions throughout, including barrier-tree shower

  • Optional entrance ramps available, adaptable to site conditions

  • Kitchen with island accessible on all sides

  • Easy-access location for side-by-side washer/dryer

  • Interior doors to bedrooms and bathrooms designed wide enough for wheelchair access

  • Intuitive controls for the house's systems

Construction Affordability

  • Insulated concrete slab-on-grade reduces complication of crawl space construction (foundation profile can be adjusted for sloped sites)

  • Windows and doors are standard sizes

  • Lumber take-off package available for maximum yield and less waste, with optional incorporation of reclaimed lumber

  • Affordable, sustainable material specifications available
